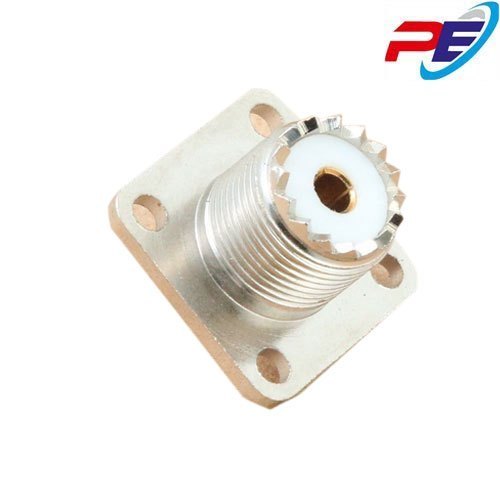

Clamp Type UHF Female Square Panel Connector

Name: Clamp Type UHF Female Square Panel Connector
Brand: PANKAJ ELECTRONICS ENTERPRISE
Price: 99.0 INR
Availability: InStock

Price 99.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Clamp Type UHF Female Square Panel Connector Specification

Product Type
Other

Size
Standard

Color
Silver

Warranty
YES

Material
BRASS

Clamp Type UHF Female Square Panel Connector Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Week

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Clamp Type UHF Female Square Panel Connector

Contact Material	Brass
Maximum Frequency	0300MHz
Pin Type	Clamp
Voltage	220 V
Connector Gender	Female
Plating	Nickel Plated
Impedance	50-75 ohm

Clamp Type UHF Female Square Panel Connector

Premium Build and Design

Constructed from solid brass with a lustrous silver finish, this clamp type UHF female connector provides both aesthetic appeal and heightened corrosion resistance. The square panel design allows straightforward, stable installation, enhancing mechanical and electrical reliability in RF setups.

Ideal for Versatile Applications

Engineered for standard size requirements, this panel connector is suitable for a broad range of RF and antenna systems, ensuring high compatibility. Its robust build and secure clamping mechanism make it a preferred choice for professional manufacturers and suppliers across India.

FAQ's of Clamp Type UHF Female Square Panel Connector:

Q: How is the Clamp Type UHF Female Square Panel Connector installed?

A: This connector is installed by aligning the square panel base with the mounting surface and securing it using appropriate screws or bolts. The clamp mechanism ensures a firm attachment, making it suitable for stable connections in RF equipment.

Q: What makes the brass material beneficial for this connector?

A: Brass is used for its excellent electrical conductivity and resistance to corrosion, ensuring minimal signal loss and enhanced durability during prolonged usage. The material also maintains mechanical strength, crucial for dependable panel mounting.

Q: When should I replace the connector?

A: Replacement is advised if you notice physical damage, severe wear, or compromised connection stability. However, with proper installation and usage, the brass construction and warranty ensure a long operational life.

Q: Where can this connector be used effectively?

A: It is widely used in RF communication equipment, antennas, transmitters, and panel-mount devices where secure and reliable UHF female connectivity is required. Suitable for both laboratory and field applications.

Q: What is the standard process for connecting cables to this panel connector?

A: After panel mounting, connect compatible UHF male cables to the female socket by inserting and securely tightening them, ensuring optimal electrical contact and stable transmission.

Q: How does the warranty benefit the user?

A: The included warranty provides assurance against manufacturing defects, offering support and replacement in case of issues, which enhances overall customer confidence and investment protection.
