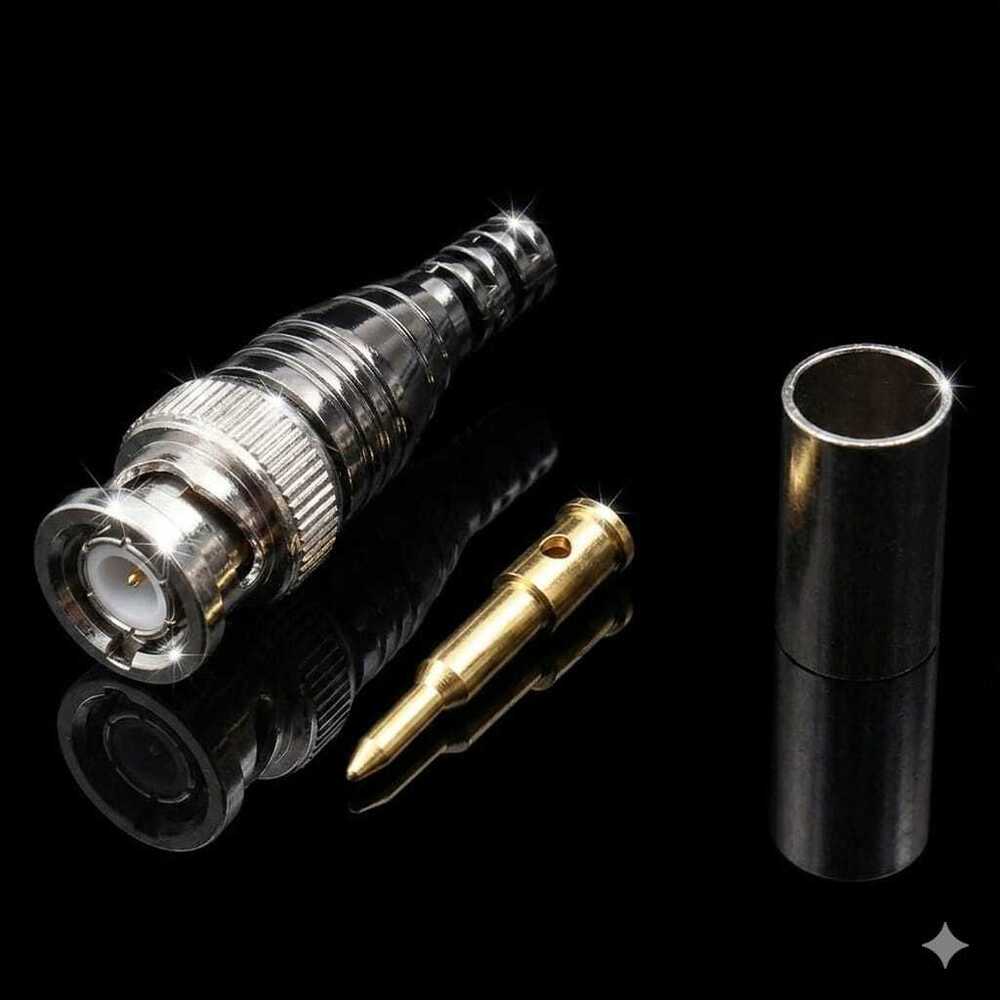

BNC Plug Crimp type

Get a Price/Quote

MOQ : 200 Pieces

BNC Plug Crimp type Specification

Product Type
BNC Plug Connector

Style
Crimp Type

Material Capabilities
Supports both coaxial cable types

Material
Brass with nickel plating

Surface Treatment
Nickel plated

CNC Machining
No

Size
Standard BNC

Dimension (L*W*H)
Approx. 3.5 cm x 1.2 cm x 1.2 cm

Color
Silver and gold

Application
RF signal connections, CCTV, test equipment

Impedance
50 Ohm / 75 Ohm

Connector Type
Bayonet Neill-Concelman (BNC)

Mounting Type
Cable mount/crimp

Operating Temperature
-55C to +85C

Gender
Male

Contact Plating
Gold plated (center pin)

Cable Compatibility
RG58, RG59, RG6 and similar coaxial cables

VSWR
1.3 (up to 1 GHz)

Termination
Crimp

Frequency Range
0-4 GHz

Insulator Material
PTFE (Polytetrafluoroethylene)

About BNC Plug Crimp type

Experience the commanding performance of our New, Exclusive BNC Plug Crimp type connector. Designed with opulent precision, this invincible connector features a robust Bayonet Neill-Concelman (BNC) interface, supporting 50/75 Ohm impedance and frequencies up to 4 GHz. Instant Checkout ensures a seamless purchase, granting swift access to high-quality components ideal for RF signal connections, CCTV, and test equipment. With gold-plated contacts and a durable PTFE insulator, its nickel-plated brass body guarantees long-lasting reliability. Compatible with RG58, RG59, RG6, and similar cables, it's engineered for exceptional connectivity and effortless installation.

Material Features and Application Advantages

Crafted from high-strength brass with nickel plating and featuring an opulent gold-plated center pin, this BNC Plug Crimp type delivers exceptional durability for demanding environments. Its robust PTFE insulator supports reliable RF transmission, while the crimp-on style facilitates straightforward installation. Use this connector for reliable signal integrity across RF communications, CCTV setups, and lab test equipment. The smooth crimping process ensures a secure cable-mount connection-ideal for professionals seeking versatile, commanding performance on any compatible surface.

Packaging, Sample Availability, and List Price Offers

We offer carefully packaged BNC Plug Crimp type connectors, each secured in protective housings to prevent transit damage. Sample units are available to help estimate project requirements and assess product suitability before large orders. Our transparent sample policy allows you to review quality prior to purchase. Request an exclusive list price for bulk enquiries-our dedicated team is ready to provide competitive offers designed to fulfill your operational needs efficiently and affordably.

FAQ's of BNC Plug Crimp type:

Q: How do I install the BNC Plug Crimp type connector on a coaxial cable?

A: Installation involves stripping the coaxial cable, inserting the connector components, and using a crimp tool to secure it to the cable. Follow the recommended process for your cable type (RG58, RG59, or RG6) to ensure a robust connection.

Q: What are the main uses for the BNC Plug Crimp type connector?

A: This connector is widely used for RF signal connections, CCTV camera installations, and test equipment due to its dependable signal integrity and compatibility with multiple coaxial cable types.

Q: What benefits does the gold-plated center pin provide?

A: The gold plating on the center pin ensures excellent conductivity and resistance to corrosion, resulting in superior signal transmission and extended product lifespan.

Q: Where can these connectors be used effectively?

A: BNC Plug Crimp type connectors are ideal for both indoor and outdoor RF applications, including broadcasting, security surveillance systems, laboratory setups, and professional audio/video connections.

Q: Is there a process for requesting product samples?

A: Yes, you can request samples by contacting our sales team. We offer samples so you can evaluate the product quality and estimate its fit for your needs before committing to larger orders.
